Product Summary

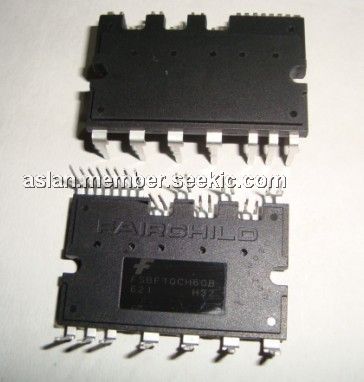

The FSBF10CH60BT is an advanced motion-smart power module (Motion-SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

Parametrics

Absolute maximum ratings: (1)VPN, Supply Voltage: 450V when applied between P- NU, NV, NW; (2)VPN(Surge), Supply Voltage (Surge): 500V when applied between P- NU, NV, NW ; (3)VCES, Collector-emitter Voltage: 600V; (4)± IC, Each IGBT Collector Current: 10 A when TC = 25℃ ; (5)± ICP, Each IGBT Collector Current (Peak): 20A when TC = 25℃, Under 1ms Pulse Width ; (6)PC, Collector Dissipation: 20 W when TC = 25℃ per One Chip ; (7)TJ(Power chips), Operating Junction Temperature: -40~150 ℃.

Features

Features: (1)UL Certified No.E209204(SPM27-JA package); (2)600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (3)Easy PCB layout due to built in bootstrap diode; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.

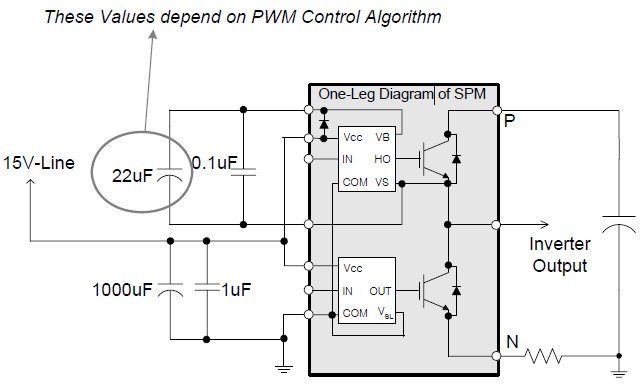

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FSBF10CH60BT
FSBF10CH60BT
Fairchild Semiconductor
Motor / Motion / Ignition Controllers & Drivers Smart Power Module
Data Sheet
0-1: $12.75
1-25: $11.60
25-100: $9.86
100-250: $8.99
FSBF10CH60BTL
FSBF10CH60BTL
Fairchild Semiconductor
Motor / Motion / Ignition Controllers & Drivers Smart Power Module
Data Sheet
0-1: $8.35
1-25: $7.03
25-100: $6.46
100-250: $5.89
