Product Summary

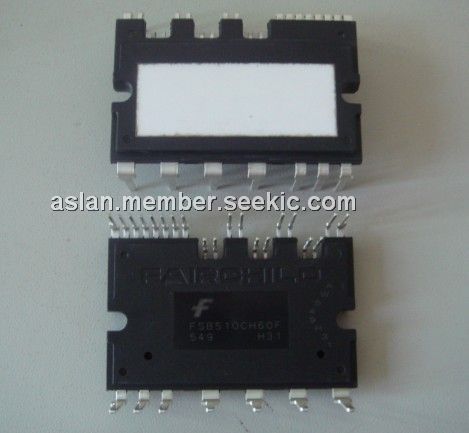

The FSBS10CH60 is an advanced smart power module (SPMT) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting lowpower inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and shortcircuit protection. The high speed built-in HVIC provides optocoupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.
Parametrics
Absolute maximum ratings: (1)VPN, Supply Voltage: 450 V Applied between P- NU, NV, NW; (2)VPN(Surge), Supply Voltage (Surge): 500 V applied between P- NU, NV, NW ; (3)VCES, Collector-emitter Voltage: 600 V; (4)± IC, Each IGBT Collector Current: 10 A at TC = 25℃; (5)± ICP, Each IGBT Collector Current (Peak): 20 A at TC = 25℃, Under 1ms Pulse Width; (6)PC, Collector Dissipation: 27 W at TC = 25℃ per One Chip; (7)TJ, Operating Junction Temperature: -20 ~ 125 ℃.
Features
Features: (1)UL Certified No.E209204(SPM27-BA package); (2)600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (3)Divided negative dc-link terminals for inverter current sensing applications; (4)Single-grounded power supply due to built-in HVIC; (5)Isolation rating of 2500Vrms/min; (6)Very low leakage current due to using ceramic substrate.

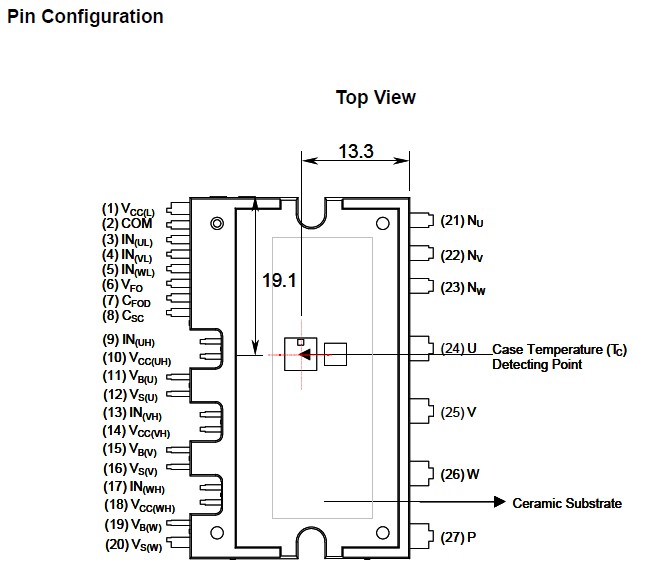

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSBS10CH60 |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers HIGH_POWER |
Data Sheet |
|
|
||||||||||||
|
FSBS10CH60F |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 600V -10A SPM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
FSBS10CH60SL |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 600V/10A Smart Power Module for Invertek |
Data Sheet |
|
|
||||||||||||
|
FSBS10CH60T |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 600V -10A IGBT SMART |
Data Sheet |
|
|
||||||||||||
|
FSBS10CH60L |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 600V 10A SMART POWER MODULE IGBT |
Data Sheet |
|
|
||||||||||||
