Product Summary

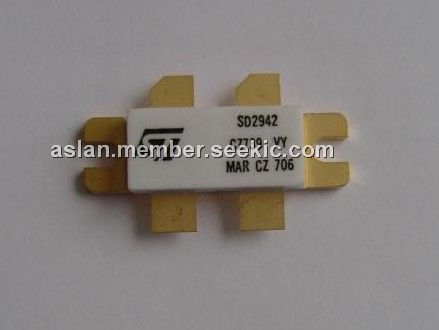

The SD2942 is a gold metallized N-Channel MOS field-effect RF power transistor.
Parametrics
Absolute maximum ratings: (1)Drain Source Voltage:130V; (2)Drain-Gate Voltage (RGS = 1MΩ):130V; (3)Gate-Source Voltage:±20V; (4)Drain Current:40A; (5)Power Dissipation:500W; (6)Max. Operating Junction Temperature:+200℃; (7)Storage Temperature:-65℃ to +150℃.
Features
Features: (1)gold metallization; (2)excellent thermal stability; (3)common source configuration, push pull; (4)POUT = 350W min. with 15dB gain @ 175MHz; (5)low RDS(on).

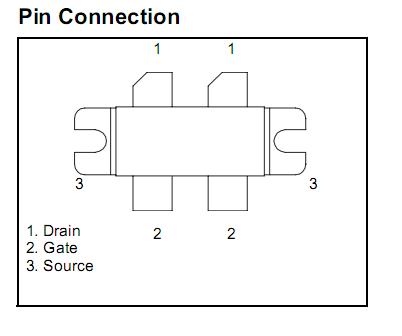

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD2942 |
STMicroelectronics |
MOSFET RF POWER TRANS |
Data Sheet |
|
|
||||||||||||
 |
SD2942W |
STMicroelectronics |
Transistors RF MOSFET Power RF PWR N-Ch MOS 350W 15dB 175MHz |
Data Sheet |
|
|
||||||||||||
