Product Summary

The MRF151G is a N–channel broadband RF power MOSFET. It is designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequency bands.

Parametrics

Absolute maximum ratings: (1)Drain–Source Voltage, VDSS: 125Vdc; (2)Drain–Gate Voltage, VDGO: 125 Vdc; (3)Gate–Source Voltage, VGS: ±40 Vdc; (4)Drain Current — Continuous, ID: ±40Adc; (5)Total Device Dissipation , PD: 500Watts @ TC = 25℃; 2.85W/℃ when Derate above 25℃; (6)Storage Temperature Range, Tstg: –65 to +150 ℃; (7)Operating Junction Temperature, TJ: 200 ℃.

Features

Features: (1)Guaranteed Performance at 175 MHz, 50 V: Output Power: 300 W; Gain: 14 dB (16 dB Typ); Efficiency: 50%; (2)Low Thermal Resistance: -0.35℃/W; (3)Ruggedness Tested at Rated Output Power; (4)Nitride Passivated Die for Enhanced Reliability.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

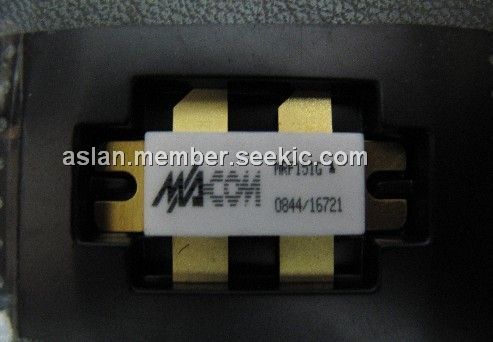

MRF151G
MRF151G
M/A-COM Technology Solutions
Transistors RF MOSFET Power 5-175MHz 300Watts 50Volt Gain 14dB
Data Sheet
0-1: $75.00
1-10: $72.60
10-25: $70.20
25-50: $56.73
MRF151GB
MRF151GB
Advanced Semiconductor, Inc.
Transistors RF MOSFET Power RF Transistor
Data Sheet
0-1: $75.00
1-10: $72.60
10-25: $70.20
25-50: $56.73
MRF151GC
MRF151GC
Advanced Semiconductor, Inc.
Transistors RF MOSFET Power RF Transistor
Data Sheet
0-1: $75.00
1-10: $72.60
10-25: $70.20
25-50: $56.73
