Product Summary

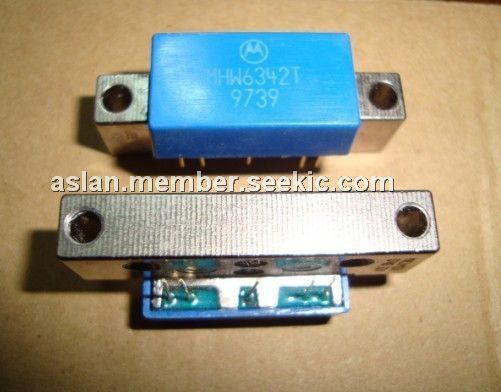

The MHW6342T is designed specifically for 550 MHz CATV applications. Features ion–implanted arsenic emitter transistors with 7 GHz fT and an all gold metallization system.
Parametrics
Absolute Maximum Ratings: (1)DC Supply Voltage, VCC: +28Vdc; (2)RF Input Voltage (Single Tone), Vin: +55dBmV; (3)Operating Case Temperature Range, TC: –20 to +100℃; (4)Storage Temperature Range, Tstg: – 40 to +100℃.
Features
Features: (1)Specified for 77–Channel Performance; (2)Broadband Power Gain at f=40–550 MHz, Gp=34.5 dB (Typ) at 50 MHz, Gp=35.2 dB (Typ) at 550 MHz; (3)Broadband Noise Figure at 550 MHz, NF=5.5 dB (Typ); (4)Superior Gain, Return Loss and DC Current Stability with Temperature; (5)All Gold Metallization; (6)7 GHz Ion–Implanted Transistors.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW6342T |
|
AMP CATV 77 CHANNEL CASE 1302-01 |
Data Sheet |
Negotiable |
|
||||
 |
MHW6342TN |
|
IC CATV AMP MOD 550MHZ 310MA 7P |
Data Sheet |
Negotiable |
|
||||
